Chevrolet Cruze Owners Manual: Center Console Storage
The center console storage has a storage area under the armrest. Pull up on the latch on the front of the armrest to access.

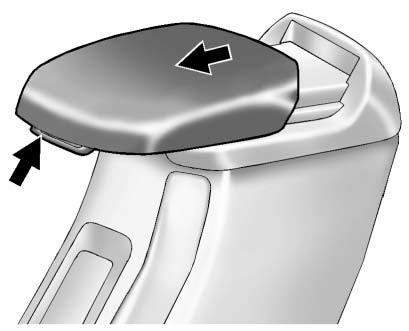

Pull up on the latch and slide the center console armrest to adjust the position. Return the armrest to the rear position to access the storage area.
There may be an auxiliary jack outlet and a USB port located in the center console.
Cupholders
Cupholders are in the center console.
Cupholders may be located in the second row seat armrest. To access, pull the
armrest down. ...
Additional Storage Features
Cargo Tie-Downs
On the driver side in the rear compartment is a retainer to hang light items
on. ...
