Chevrolet Cruze Repair Manual: Center Pillar Upper Garnish Molding Replacement

Chevrolet Cruze Repair Manual / Body hardware and trim / Interior Trim and Paneling / Center Pillar Upper Garnish Molding Replacement

Preliminary Procedure

Preliminary Procedure

  1. Remove the center pillar lower garnish molding. Refer to Center Pillar Lower Ga   rnish Molding Replacement
  2. Remove the seat belt from the front seat. Refer to Driver or Passenger Seat Retractor Side Belt Replacement

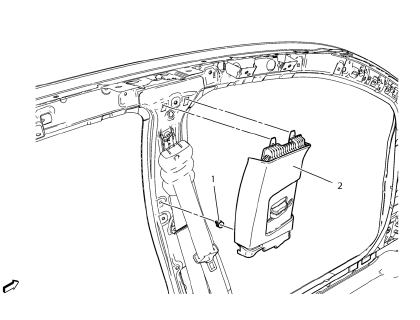

  1. Center Pillar Upper Garnish Molding Clip
  2. Center Pillar Lower Garnish Molding Assembly

Procedure

When replacing the center pillar lower garnish molding, remove the seat belt through the molding.

Center Pillar Lower Garnish Molding Replacement

Preliminary Procedure

Preliminary Procedure

  1. Remove the front side door sill trim plate. Refer to Front Side Door Sill  Trim Plate Replacement
  2. Remove the rear side door sill trim plate. Refer to Rear Side Door Sill Trim Plate Replacement.

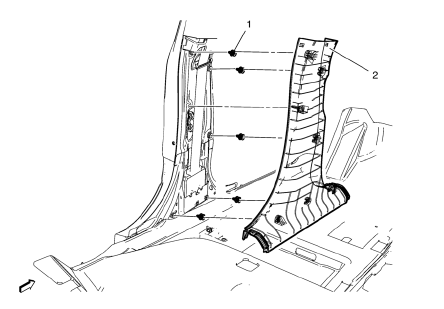

  1. Center Pillar Lower Garnish Molding Clip (Qty: 6)
  2. Center Pillar Lower Garnish Molding Assembly

Quarter Window Garnish Molding Replacement

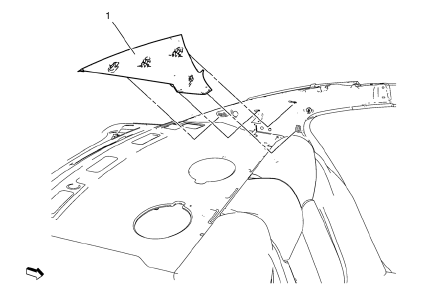

  1. Quarter Window Garnish Molding Assembly.
Windshield Garnish Molding Replacement
Preliminary Procedure Disable the SIR system. Refer to SIR Disabling and Enabling. Windshield Garnish Molding Assembly Procedure Loosen  tether clip and steel clips. Disconnect ...

Body Side Trim Panel Replacement - Left Side
Preliminary Procedure Remove the rear side door sill trim plate. Refer to Rear Side Door Sill  Trim Plate Replacement. Remove the rear seat back. Refer to Rear Seat Replacement. Re ...
