Chevrolet Cruze Repair Manual: Driver or Passenger Seat Recliner Handle Replacement

Chevrolet Cruze Repair Manual / Seats / Seat Hardware, Trim, and Upholstery / Driver or Passenger Seat Recliner Handle Replacement

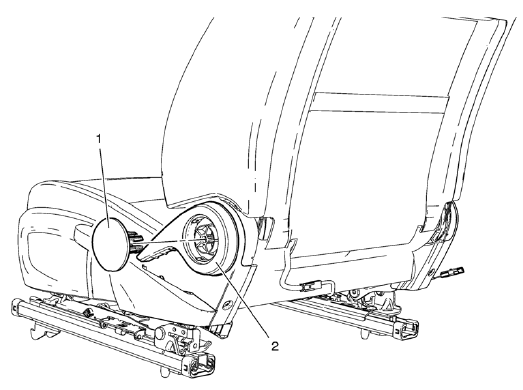

Recliner Handle Panel Seat Backrest

Recliner Handle Panel Seat Backrest

Procedure

Use flat blade to removel panel.

Recliner Handle Seat Backrest

Procedure

Use flat blade to remove handle.
