Chevrolet Cruze Repair Manual: Floor Air Outlet Duct Replacement - Right Side (Right Hand Drive)

Chevrolet Cruze Repair Manual / HVAC System / Floor Air Outlet Duct Replacement - Right Side (Right Hand Drive)

Removal Procedure

  1. Remove instrument outer trim cover -- right side. Refer to Instrument Panel Outer Trim Cover Replacement   - Right Side.
  2. Remove instrument panel lower trim pad cover -- left side. Refer to Instrument Panel Lower Trim Pad Cover Replacement.

  1. Remove floor air outlet duct (1) -- right side.

Installation Procedure

  1. Install floor air outlet duct (1) -- right side.
  2. Install instrument panel lower trim pad cover -- left side. Refer to Instrument Panel Lower Trim Pad Cover Replacement.
  3. Install instrument outer trim cover -- right side. Refer to Instrument Panel Outer Trim Cover Replacement - Right Side.

Floor Rear Air Outlet Duct Replacement - Left Side

Preliminary Procedure

Preliminary Procedure

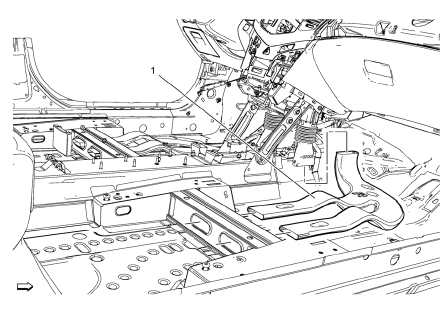

Remove front floor panel carpet. Refer to Front Floor Panel Carpet Replacement.

  1. Floor Rear Air Outlet Duct

Floor Rear Air Outlet Duct Replacement - Right Side

Preliminary Procedure

Preliminary Procedure

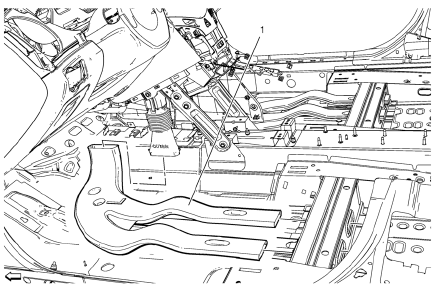

Remove front floor panel carpet. Refer to Front Floor Panel Carpet Replacement.

Floor Rear Air Outlet Duct

Heater and Air Conditioning Remote Control Replacement

Preliminary Procedures

Preliminary Procedures

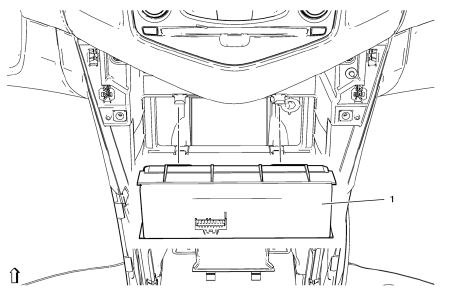

Remove heater and air conditioning control. Refer to Heater and Air Conditioning Control Replacement.

Heater and Air Conditioning Remote Control

Procedure

Disconnect electrical components.

Instrument Panel Outer Air Outlet Duct Replacement
Preliminary Procedure Remove instrument panel assembly. Refer to Instrument Panel Assembly Replacement. Instrument Panel Outer Air Outlet Duct Screw (Qty: 7) Caution: Refer to Fastener Cautio ...

Heating and Air Conditioning System Description and Operation
Engine Coolant Engine coolant is the key element of the heating system. The thermostat controls engine operating coolant temperature. The thermostat also creates a restriction for the cooling syst ...
