Chevrolet Cruze Repair Manual: Front Side Door Trim Replacement

Chevrolet Cruze Repair Manual / Body hardware and trim / Interior Trim and Paneling / Front Side Door Trim Replacement

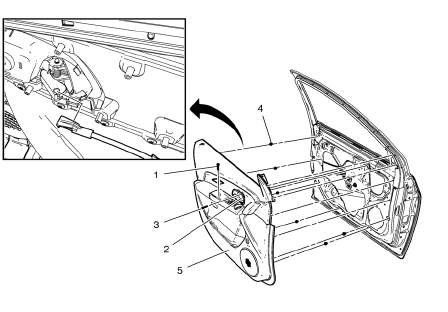

  1. Front Side Door Pull Handle Bolt

Caution: Refer to Fastener Caution in the Preface section.

Tighten 2 N·m (18 lb in)

  1. Front Side Door Inside Handle Bolt Finish Cap

Tip Pull handle back to remove cap. Use suitable tool to unsnap.

  1. Front Side Door Inside Handle Bolt

Tighten 2.5 N·m (22 lb in)

  1. Front Side Door Trim Clip (Qty: 10)
  2. Front Side Door Trim Assembly

Procedure

  1. Pull upwards on the door   lock retainer cable to disengage.
  2. Disconnect the electrical connectors.

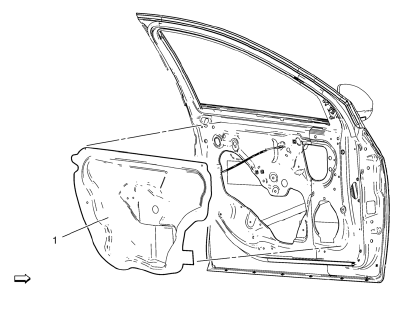

Front Side Door Water Deflector Replacement

Preliminary Procedure

Preliminary Procedure

Remove the front side door trim. Refer to Front Side Door Trim Replacement.

  1. Front Side Door Water Deflector

Procedure

Pull the water deflector from the door. Guide electrical connectors through the water deflector while removing it from the door.

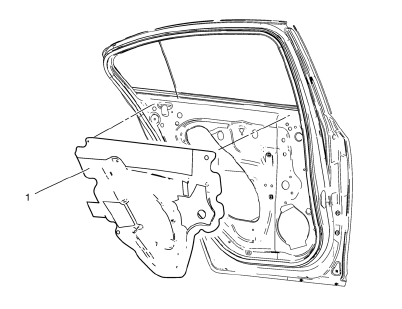

Rear Side Door Water Deflector Replacement

Preliminary Procedure

Preliminary Procedure

Remove the rear side door trim. Refer to Rear Side Door Trim Replacement.

Rear Side Door Water Deflector

Procedure

  1. Pull the water deflector from the door. Guide electrical connectors through the water deflector while removing it from the door.

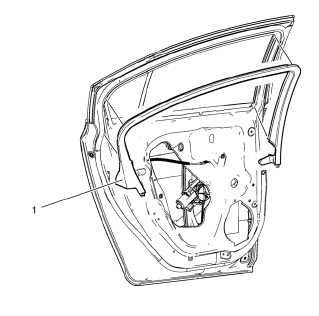

Rear Side Door Window Garnish Molding Replacement

Preliminary Procedure

Preliminary Procedure

Remove the rear side door trim. Refer to Rear Side Door Trim Replacement.

  1. Rear Side Door Window Garnish Molding Assembly.

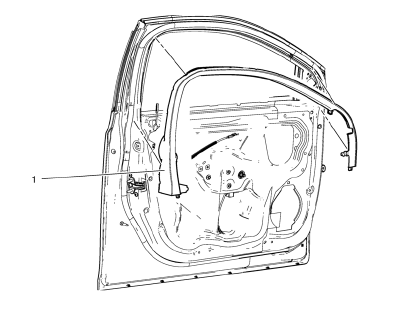

Front Side Door Window Garnish Molding Replacement

Preliminary Procedure

Preliminary Procedure

Remove the front side door trim. Refer to Front Side Door Trim Replacement.

  1. Front Side Door Window Garnish Molding Assembly.

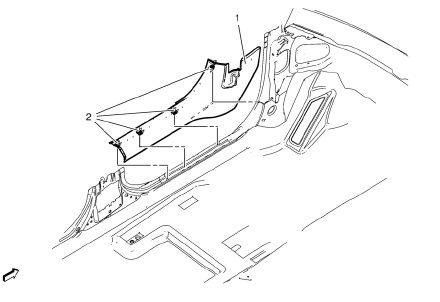

Front Side Door Sill Trim Plate Replacement

  1. Front Side Door Sill Trim Plate Assembly.
  2. Front Side Door Sill Trim Plate Assembly Clip (Qty: 5).

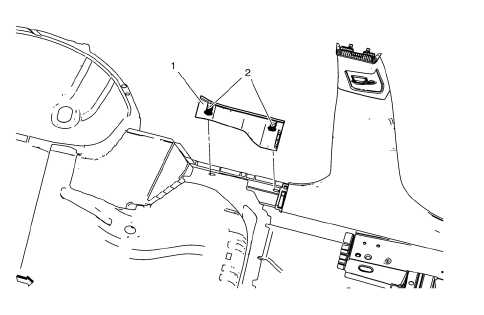

Rear Side Door Sill Trim Plate Replacement

  1. Rear Side Door Sill Trim Plate Replacement Assembly.
  2. Rear Side Door Sill Trim Plate Replacement Assembly Clip (Qty: 2).

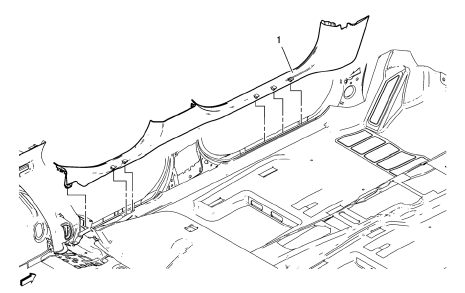

Front and Rear Side Door Sill Trim Plate Replacement

  1. Front and Rear Side Door Sill Trim Plate

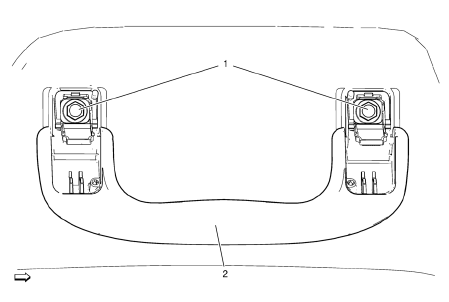

Assist Handle Replacement

  1. Assist Handle Screw (Qty: 2)

Caution: Refer to Fastener Caution in the Preface section.

Procedure

  1. Fold the assist  handle downward and hold.
  2. Use a small flat-bladed tool to open the assist handle covers to access the screws.

Tighten 6 N·m (53 lb in)

  1. Assist Handle Assembly

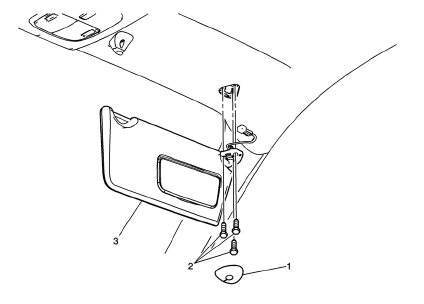

Sunshade Replacement

Preliminary Procedure

Preliminary Procedure

Lower the front of the headliner to access the sunshade electrical connector, if necessary. Refer to Headlining Trim Panel Replacement.

  1. Sunshade Support Bolt Cover
  2. Sunshade Screws (Qty: 3)

Caution: Refer to Fastener Caution in the Preface section.

Tighten 3 N·m (27 lb in)

  1. Sunshade Assembly

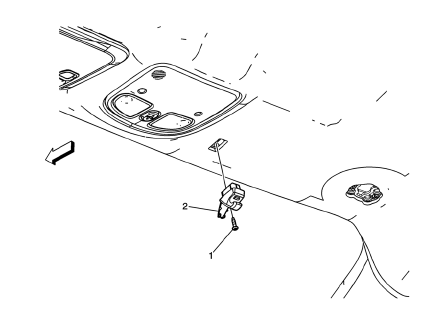

Sunshade Support Replacement

Preliminary Procedure

Preliminary Procedure

Remove sunshade assembly. Refer to Sunshade Replacement.

  1. Sunshade Support Screw.

    Caution: Refer to Fastener Caution in the Preface section.

    Tighten 3 N·m (27 lb in).

  2. Sunshade Support Assembly.
