Chevrolet Cruze Repair Manual: Front Suspension

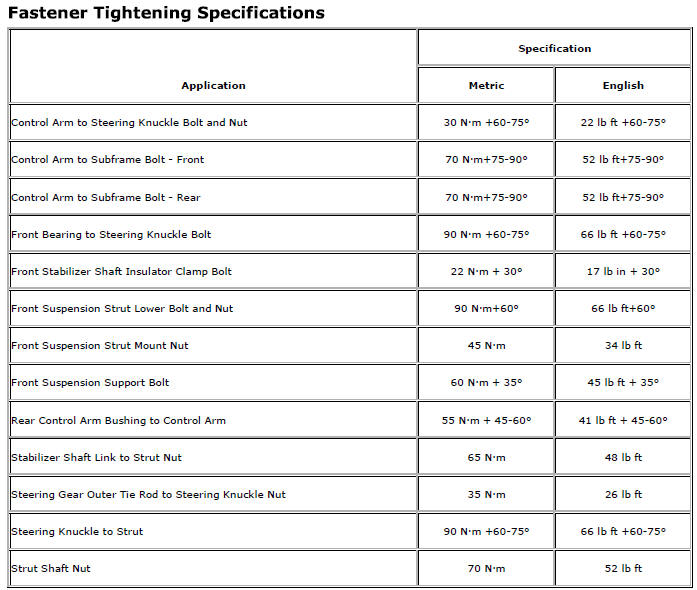

Specifications

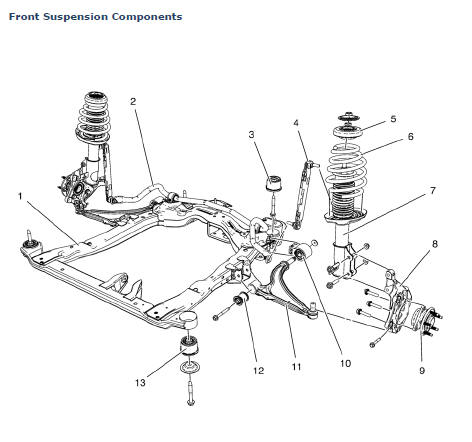

Front Suspension Components
- Drivetrain and Front Suspension Frame
- Front Stabilizer Shaft
- Drivetrain and Front Suspension Frame Rear Insulator
- Front Stabilizer Shaft Link
- Front Suspension Strut Insulator Assembly
- Front Spring
- Shock Absorber Assembly
- Front Wheel Bearing/Hub Assembly
- Front Lower Control Arm Rear Bushing
- Front Lower Control Arm
- Front Lower Control Arm Bushing
- Drivetrain and Front Suspension Frame Rear Insulator
- Stabilizer Shaft Replacement
- Stabilizer Shaft Link Replacement
- Stabilizer Shaft Insulator Replacement
- Front Wheel Bearing and Hub Replacement
- Steering Knuckle Replacement
- Lower Control Arm Replacement
- Front Lower Control Arm Bushing Replacement
- Wheel Stud Replacement
- Strut Assembly Replacement
- Shock Absorber Disposal
- Strut, Strut Component, or Spring Replacement
- Front Suspension Description and Operation
Suspension
...
Stabilizer Shaft Replacement
Special Tools
CH 904 Underframe
CH 49289 Centering Adapter
EN 45059 Torque Angle Sensor Kit
For equivalent regional tools, refer to Special Tools.
Removal Procedure
Turn the front whee ...
