Chevrolet Cruze Owners Manual: Hood

To open the hood:

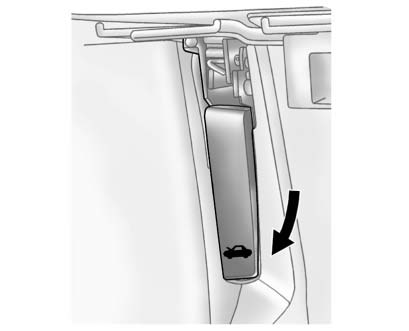

1. Pull up on the hood release handle. It is located inside the vehicle to the

1. Pull up on the hood release handle. It is located inside the vehicle to the left of the steering column.

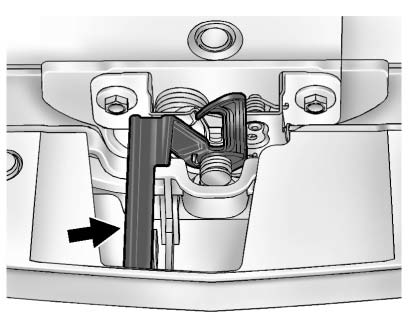

2. Go to the front of the vehicle and push the secondary hood release handle

2. Go to the front of the vehicle and push the secondary hood release handle toward the driver side of the vehicle.

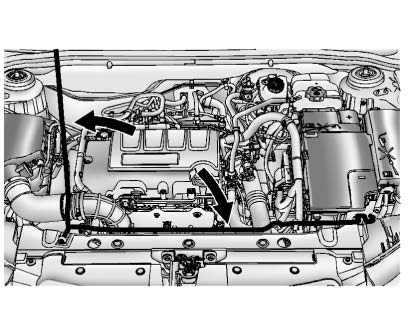

3. Lift the hood and release the hood prop from its retainer, located above the

3. Lift the hood and release the hood prop from its retainer, located above the radiator.

Securely place the hood prop into the slot on the underside of the hood.

To close the hood:
1. Before closing the hood, be sure all the filler caps are on properly.

Then, lift the hood to relieve pressure on the hood prop.

Remove the hood prop from the slot on the underside of the hood and return the prop to its retainer. The prop rod must click into place when returning it to the retainer to prevent hood damage.

2. Lower the hood 30 cm (12 in) above the vehicle and release it so it fully latches. Check to make sure the hood is closed and repeat the process if necessary.
