Chevrolet Cruze Repair Manual: HVAC System

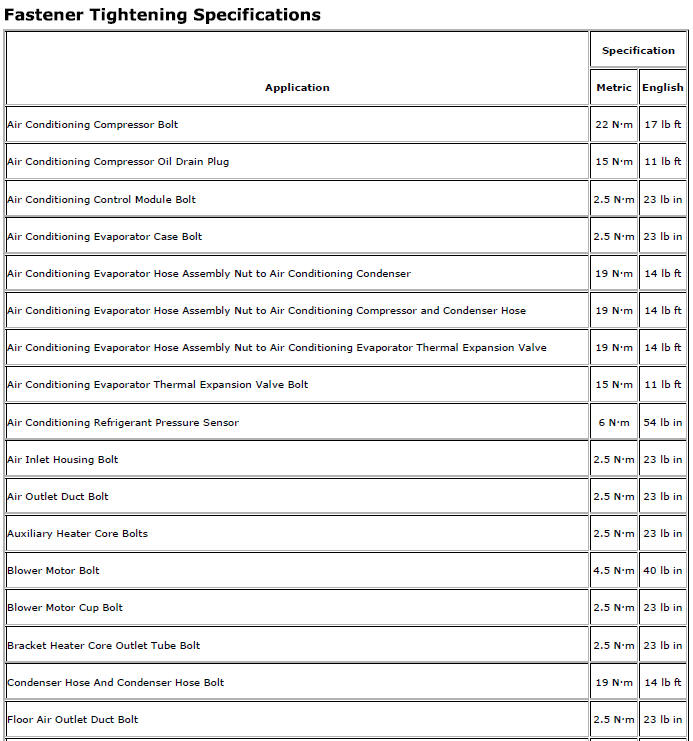

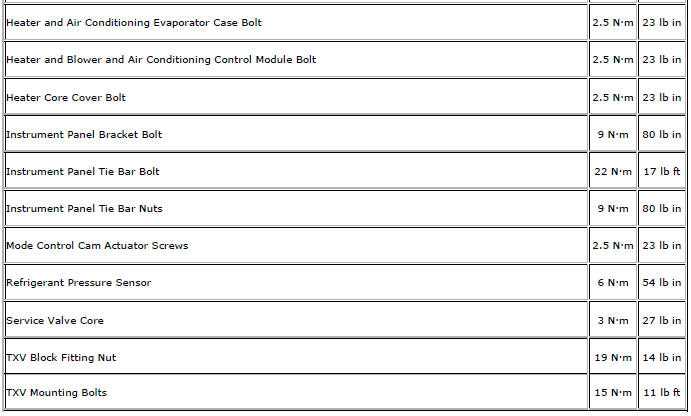

Specifications
- Refrigerant Recovery and Recharging
- Air Conditioning Compressor Replacement (1.6L LDE, LXV, and 1.8L 2H0)
- Air Conditioning Compressor Replacement (1.6L LXT)
- Air Conditioning Compressor and Condenser Hose Replacement (1.6L LXT)
- Air Conditioning Compressor and Condenser Hose Replacement (1.6L LDE, LXV, and 1.8L 2H0)
- Air Conditioning Evaporator Hose Assembly Replacement
- Air Conditioning Condenser Replacement (1.6L LDE, LXT, LXV, and 1.8L 2H0)
- Instrument Panel Outer Air Outlet Replacement - Left Side
- Floor Air Outlet Replacement
- Instrument Panel Outer Air Outlet Duct Replacement
- Floor Air Outlet Duct Replacement - Right Side (Right Hand Drive)
- Heating and Air Conditioning System Description and Operation
Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment
Ensure that the steering wheel is set in a straight ahead position.
Loosen the tie rod jam nut (1).
Adjust the toe to specification by turning the adjuster (2). Refer to
Wheel Alignment ...
Refrigerant Recovery and Recharging
Special Tools
GE-45037 A/C Oil Injector
For equivalent regional tools, refer to Special Tools.

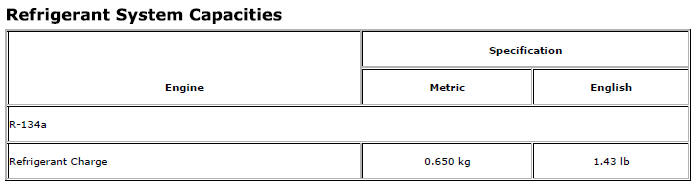

Refrigerant Recovery and Recharging
Warning: To prevent personal injury, avoid breathing A/C Refriger ...
Other materials:
Deployment Outside Vehicle - Steering Wheel Module, Instrument Panel
Module, and Roof Rail Module
Deploy the inflator module outside of the vehicle when the vehicle will be
returned to service. Situations that require deployment outside
of the vehicle include the following:
Using the SIR diagnostics, you determine that the inflator module is
malfunctioning
The inflator module is cosm ...
Dual Stage Inflator Modules
Dual stage inflator modules contain a housing, inflatable air bag, two
initiating devices, canister of gas generating material and, in some
cases, stored compressed gas. The two initiators are part of the frontal
deployment loop. The function of the frontal deployment loops are
to supply curre ...
Installation Procedure
Position the front brake shield (2) and front wheel bearing/hub (1)
assembly in the steering knuckle.
Caution: Refer to Fastener Caution in the Preface section.
Install the NEW front wheel bearing/hub bolts (1).
Tighten the bearing/hub bolts (1) in 3 passes. Use the EN-45059 k ...
