Chevrolet Cruze Repair Manual: Installation Procedure

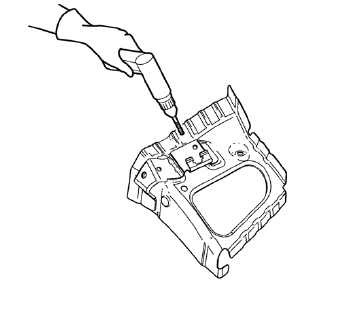

- Create 5 x 18 mm (4/16 x 11/16 in) slots for MIG-Brazing along the edges of the front wheelhouse front panel as noted from the original panel.

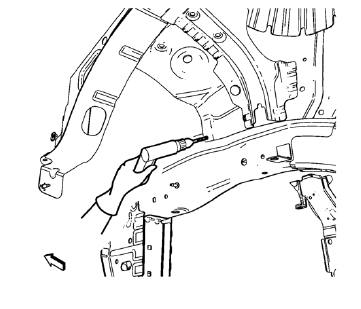

- Create a 5 x 18 mm (4/16 x 11/16 in) slot for MIG-Brazing where front wheelhouse front panel and front wheelhouse overlap.
- Clean and prepare the attaching surfaces for brazing.

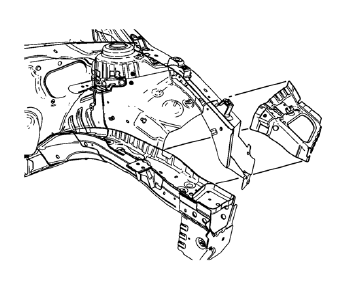

- Position the front wheelhouse front panel on the vehicle.
- Verify the fit of the front wheelhouse front panel.

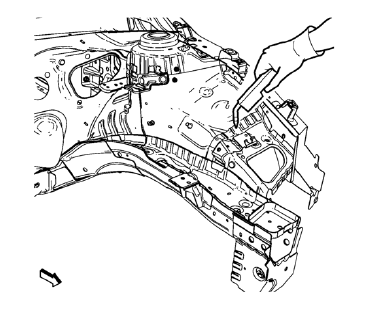

- Clamp the front wheelhouse front panel into position.
- Braze accordingly.

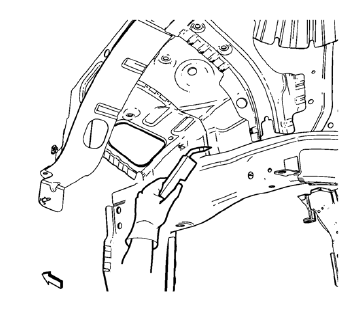

- Braze the joint from front wheelhouse front panel to front wheelhouse accordingly.
- Apply the sealers and anti-corrosion materials to the repair area, as necessary. Refer to Anti-Corrosion Treatment and Repair.
- Paint the repaired area. Refer to Basecoat/Clearcoat Paint Systems.
- Install all related panels and components.
- Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection.
- Enable the SIR system. Refer to SIR Disabling and Enabling.
