Chevrolet Cruze Repair Manual: Installation Procedure
- Align the body side outer panel reinforcement.

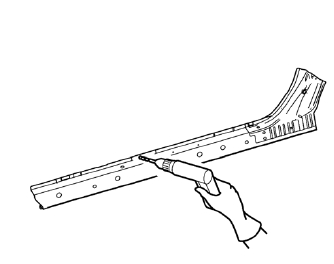

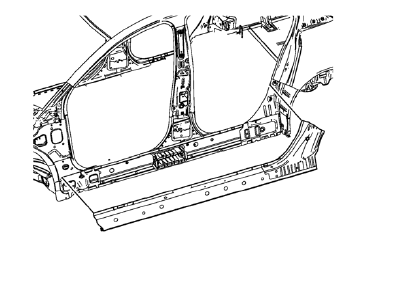

- Drill 8 mm (5/16 in) for plug welding along the edges of the body side outer panel reinforcement as noted from the original panel.
- Clean and prepare the attaching surfaces for welding.
- Position the body side outer panel reinforcement on the vehicle.
- Verify the fit of the body side outer panel reinforcement.
- Clamp the body side outer panel reinforcement into position.
- Plug weld accordingly.

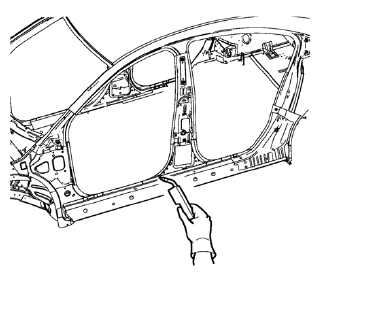

- Apply the sealers and anti-corrosion materials to the repair area, as necessary. Refer to Anti-Corrosion Treatment and Repair.
- Paint the repaired area. Refer to Basecoat/Clearcoat Paint Systems.
- Install all related panels and components.
- Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection.
- Enable the SIR system. Refer to SIR Disabling and Enabling.
Removal Procedure
Warning: Refer to Approved Equipment for Collision Repair Warning in the
Preface section.
Warning: Refer to Collision Sectioning Warning in the Preface section.
Warning: Refer to Glass and She ...
Body Side Outer Panel Reinforcement Replacement (MIG-Brazing)
Note: According to different corrosion warranties, only the
regional mandatory joining methods are allowed. ...
