Chevrolet Cruze Repair Manual: Instrument Panel Cluster Lower Trim Plate Replacement
Preliminary Procedure
Remove instrument panel cluster trim plate. Refer to Instrument Panel Cluster Trim Plate Replacement.

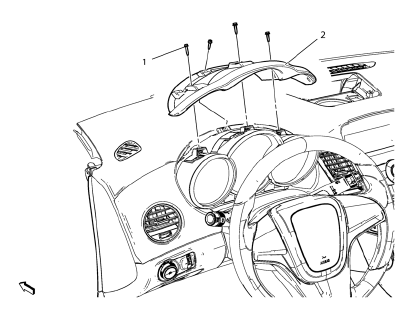

- Instrument Panel Cluster Lower Trim Plate Screw (Qty: 4)
Caution: Refer to Fastener Caution in the Preface section.
Tighten 2.5 N·m (23 lb in)
- Instrument Panel Cluster Lower Trim Plate Assembly
Instrument Panel Lower Trim Pad Cover Replacement
Preliminary Procedure
Remove the left outer trim cover. Refer to Instrument Panel Outer Trim Cover
Replacement - Left Side.
Instrument Panel Lower Trim Pad Cover Screw (Qty: 3)
Caution: ...
Instrument Panel Lower Trim Panel Replacement - Right Side
Instrument Panel Lower Trim Panel Replacement - Right Side
...
