Chevrolet Cruze Repair Manual: Instrument Panel Compartment Replacement

Instrument Panel Upper Compartment Replacement

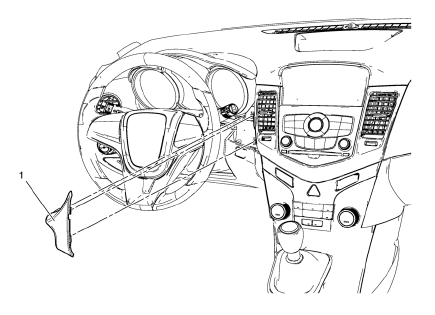

Instrument Panel Upper Compartment Screw (Qty: 2) Caution: Refer to Fastener Caution in the Preface section. Procedure Before removing the instrument panel upper compartment screws, remove ...

Instrument Panel Upper Trim Pad Insert Replacement

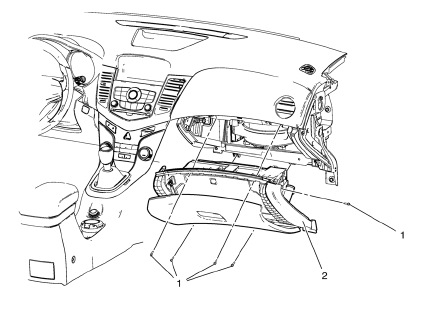

Preliminary Procedure Remove the instrument panel. Refer to Instrument Panel Assembly Replacement. Instrument Panel Upper Trim Pad Insert Screw (Qty: 6) Caution: Refer to Fastener Caution ...

Other materials:

Removal Procedure
Warning: Refer to Approved Equipment for Collision Repair Warning in the Preface section. Warning: Refer to Glass and Sheet Metal Handling Warning in the Preface section. Disable the SIR System. Refer to SIR  Disabling and Enabling. Disconnect the negative battery cable. Refer to ...

Installation Procedure
Align the rear compartment floor panel. Drill 8 mm (5/16 in) for plug welding along the edges of the rear compartment floor panel as noted from the original panel. Clean and prepare the attaching surfaces for welding. Position the rear compartment floor panel on the vehicle. V ...

Headlamp Mount Panel Replacement (MAG-Welding)
Note: According to different corrosion warranties, only the regional mandatory joining methods are allowed. Removal Procedure Warning: Refer to Approved Equipment for Collision Repair Warning in the Preface section. Warning: Refer to Glass and Sheet Metal Handling Warning in the Preface sec ...
