Chevrolet Cruze Repair Manual: Instrument Panel Tie Bar Replacement (Right Hand Drive)

Chevrolet Cruze Repair Manual / Body hardware and trim / Instrument Panel and Console Trim / Instrument Panel Tie Bar Replacement (Right Hand Drive)

Removal Procedure

  1. Remove instrument panel compartment. Refer to Instrument  Panel Compartment Replacement.

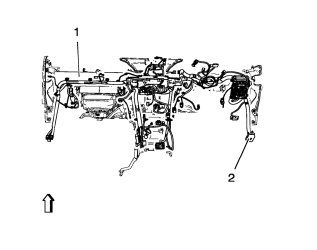

  1. Remove instrument panel wiring harness (2) from instrument panel tie bar (1).

Disconnect electrical connectors.

  1. Remove instrument panel tie bar (1).

Remove 4 instrument panel tie bar bolts (3, 4).

Remove 2 instrument panel tie bar nuts (2).

Installation Procedure

Caution: Refer to Fastener Caution in the Preface section.

  1. Install instrument panel tie bar (1).

    Install 4 instrument panel tie bar bolts (3, 4) and tighten to 22 N·m (17 lb ft).

    Install 2 instrument panel tie bar nuts (2) and tighten to 9 N·m (80 lb in).

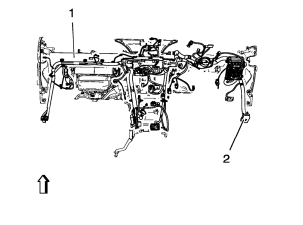

  1. Install instrument panel wiring harness (2) to instrument   panel tie bar (1).

    Connect electrical connectors.

  2. Install instrument panel compartment. Refer to Instrument Panel Compartment Replacement.
