Chevrolet Cruze Owners Manual: Passenger Sensing System

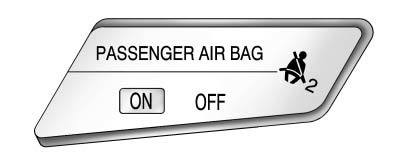

United States

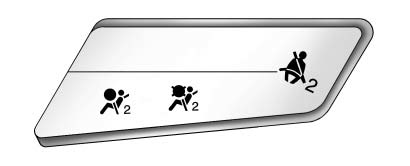

Canada
The passenger sensing system turns off the front outboard passenger frontal airbag and knee airbag under certain conditions. No other airbag is affected by the passenger sensing system.
The passenger airbag status indicator will be visible on the instrument panel when the vehicle is started.
