Chevrolet Cruze Repair Manual: Rear Axle Bushing Replacement
Special Tools
- CH 6616 Hydraulic Hand Pump
- CH 6615-10 Hydraulic Cylinder
- CH-48377-1 Chisel
- CH-49233 Adapter
- CH 906-42 Adapter
For equivalent regional tools. Refer to Special Tools
Removal Procedure
Warning: Use of eye goggles is necessary to prevent personal injury.
- Remove the rear axle. Refer to Rear Axle Replacement
- With the aid of second mechanic, place rear axle onto work bench.
- Mark installation position (dashed line) for rear axle bushing (2) on rear axle using a permanent marker.
Use upper gap (1) of bushing for alignment.

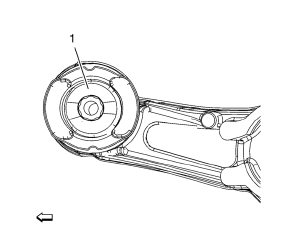

- Drill 8 times all around through rubber (1) bushings with drill 10 mm (0.4 in)
- Jigsaw carefully a V-cut (dashed line) into lower side (1) of rear axle bushing. Use lowest bore (2) to insert saw.

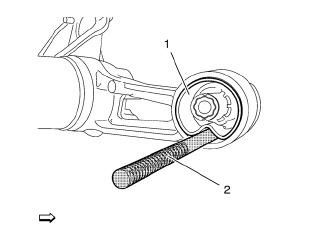

- Remove bushing (1), using CH-48377-1 chisel (2) and a hammer. Insert CH-48377-1 chisel on place of V-cut.

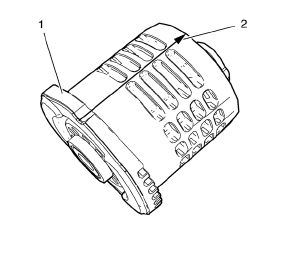

- Mark installation position (2) of NEW rear axle bushing (1) as shown in graphic above
- Align bushing marking (2) to rear axle marking (1).
- Install the following components onto rear axle bushing and rear axle:
- CH 6615-10 cylinder (1).
- CH-49233 adapter (2).
- NEW rear axle bushing (3).
- CH 906-42 adapter (4)
- Install and tighten counter nut (5) onto spindle of CH 6615-10 cylinder (1)
- Connect pressure hose (6) of CH 6616 pump to CH 6615-10 cylinder
- Press carefully the rear axle bushing in to rear axle, using CH 6616 pump .
- When lift way of CH 6615-10 cylinder reaches stop, release pressure on CH 6616 pump , retighten counter nut (5) and press rear axle bushing in to rear axle until final installation position.
- Remove ALL special tools.
- Install rear axle. Refer to Rear Axle Replacement
