Chevrolet Cruze Repair Manual: Rear Bumper Fascia Guide Replacement

Chevrolet Cruze Repair Manual / Body repair / Rear Bumper Fascia Guide Replacement

Preliminary Procedure

Preliminary Procedure

Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement.

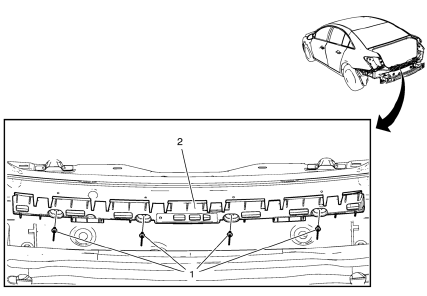

  1. Rear Bumper Fascia Guide Rivet (Qty: 4)

Special Tools

BO-594-A Hand Rivet Tongs

For equivalent regional tools, refer to Special Tools.

  1. Rear Bumper Fascia Guide

Rear Bumper Fascia Inner Guide Replacement

Preliminary Procedure

Preliminary Procedure

Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement.

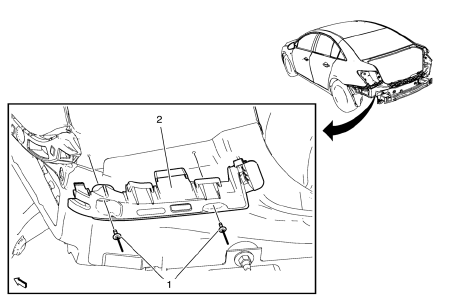

  1. Rear Bumper Fascia Inner Guide Rivet (Qty: 2)

Special Tools

BO-594-A Hand Rivet Tongs

For equivalent regional tools, refer to Special Tools.

  1. Rear Bumper Fascia Inner Guide.
Rear Bumper Fascia Replacement
Preliminary Procedure Remove the tail lamps. Refer to Tail Lamp Replacement. Rear Bumper Fascia Retainer (Qty: 2) Rear Wheelhouse Liner Bolt (Qty: 6) Caution: Refer to Fastener Caution in ...

Rear Bumper Fascia Outer Guide Replacement
Preliminary Procedure Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement. Rear Bumper Fascia Outer Guide Rivet (Qty: 3) Special Tools BO-594-A Hand Rivet Tongs For eq ...
