Chevrolet Cruze Repair Manual: Rear Side Door Check Replacement

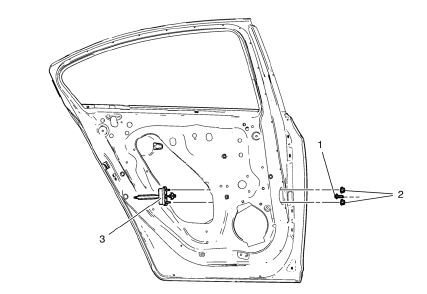

Preliminary Procedure
- Remove rear side door trim panel. Refer to Rear Side Door Trim Replacement
- Remove the rear side door water deflector. Refer to Rear Side Door Water Deflector Replacement
- Rear Side Door Check Bolt
Caution: Refer to Fastener Caution in the Preface section.
Tip Place the door in the full open position.
Tighten 25 N·m (18 lb ft)
- Rear Side Door Check Nut
Procedure
Remove the water deflector.
Tighten 9 N·m (79 lb in)
- Rear Side Door Check
