Chevrolet Cruze Repair Manual: Rear Side Door Stationary Window Replacement
Preliminary Procedures

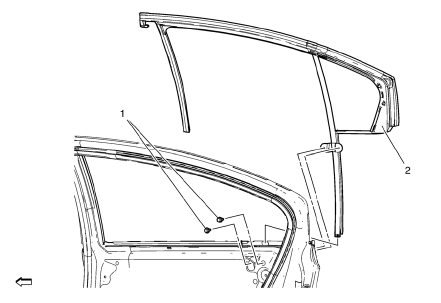

- Remove the rear side door trim panel. Refer to Rear Side Door Trim Replacement.
- Remove the rear side water deflector. Refer to Rear Side Door Water Deflector Replacement.
- Remove the rear door window outer sealing strip. Refer to Rear Side Door Window Outer Sealing Strip Replacement.
- Remove the rear side door window. Refer to Rear Side Door Window Replacement.
- Rear Side Door Stationary Window Bolt (Qty: 2)
Caution: Refer to Fastener Caution in the Preface section.
Tighten 8 N·m (71 lb in)
- Rear Door Stationary Window
Tip: Pull the bulb straight from the lamp harness socket.
Rear Side Door Window Replacement
Preliminary Procedures
Position the window approximately half way down in the door.
Remove the water deflector. Refer to Rear Side Door Water Deflector
Replacement.
Remove the out ...
Rear Window Replacement
Special Tools
BO-46974 Glass removal system
BO-641 Suction Holder
For equivalent regional tools, refer to Special Tools. ...
