Preliminary Procedure

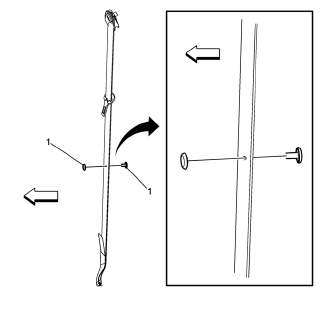

Seat Belt Stop Button
Procedure
Tip
Ensure the male half of the stop button is facing forward in the vehicle in order to ensure the stop button will not snag customers clothing.

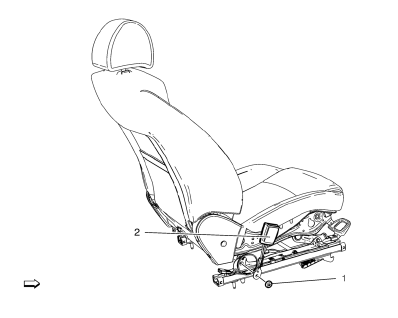

Driver or Passenger Seat Belt Buckle Replacement
Preliminary Procedure
Remove the front seat. Refer to Driver or Passenger Seat Replacement.
Front Seat Belt Buckle Bolt
Caution: Refer to Fastener Caution in the Preface section.
Tighten 45 N·m (33 lb ft)
Front Seat Belt Buckle Assembly

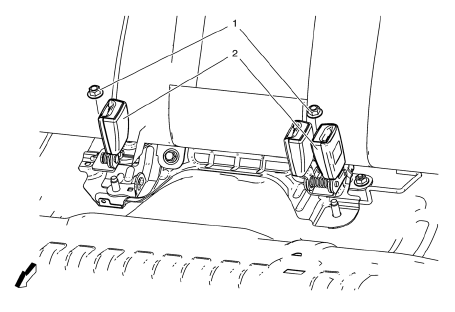

Rear Seat Buckle Side Belt Replacement
Preliminary Procedure
Remove the Rear Seat Cushion. Refer to Rear Seat Cushion Replacement.
Caution: Refer to Fastener Caution in the Preface section.
Tighten 45 N·m (33 lb ft)

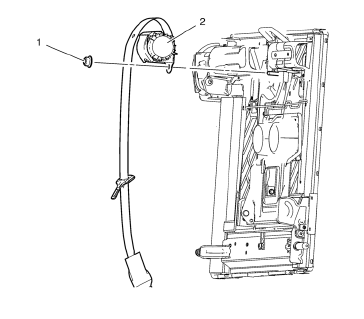

Rear Seat Center Shoulder Belt Replacement
Preliminary Procedure
Remove the right rear seat back cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement - Right Side.
Caution: Refer to Fastener Caution in the Preface section.
Tighten 45 N·m (33 lb ft)

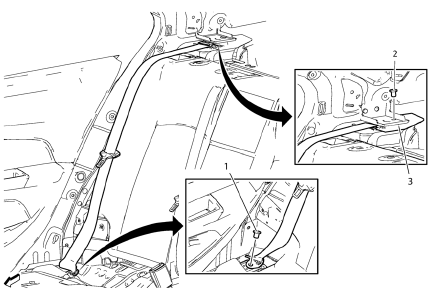

Shoulder Belt Replacement - Rear
Preliminary Procedure
Caution: Refer to Fastener Caution in the Preface section.
Tighten 45 N·m (33 lb ft)
Tighten 45 N·m (33 lb ft)

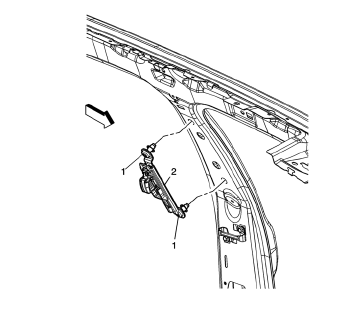

Driver or Passenger Seat Shoulder Belt Guide Adjuster Replacement
Preliminary Procedure
Remover center pillar upper garnish molding. Refer to Center Pillar Upper Garnish Molding Replacement.
Caution: Refer to Fastener Caution in the Preface section.
Tighten 45 N·m (33 lb ft)
Removal Procedure
Warning: Refer to Cracked Window Warning in the Preface section.
Warning: Refer to Glass and Sheet Metal Handling Warning in the Preface section.
Note: Position the vehicle on level ground and move the front
wheels to the straight-ahead position.
Disconnect battery.
Remove quarter window ...
Instrument Panel Cluster Lower Trim Plate Replacement
Preliminary Procedure
Remove instrument panel cluster trim plate. Refer to Instrument Panel Cluster
Trim Plate Replacement.
Instrument Panel Cluster Lower Trim Plate Screw (Qty: 4)
Caution: Refer to Fastener Caution in the Preface section.
Tighten
2.5 N·m (23 lb in)
Instrument Pa ...
