Chevrolet Cruze Repair Manual: Specifications

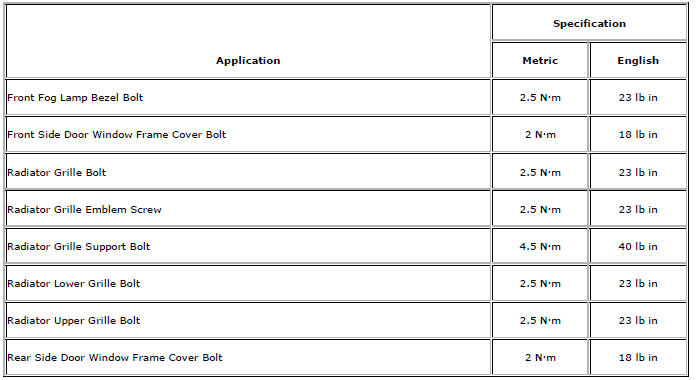

Front Door (Diesel)

Front Door (Diesel)

  1. 65 mm
  2. 83 mm

Front Door (Diesel)

  1. 60 mm
  2. 87 mm

Rear Compartment Lid (Diesel)

  1. 122 mm
  2. 32 mm

Rear Compartment Lid (Ecoline)

  1. 162 mm
  2. 32 mm
Exterior Trim
...

Front Fender Emblem/Nameplate Replacement (1.8L 2H0 or 2.0L Diesel)
Front Fender Emblem Assembly Caution: Refer to Exterior Trim Emblem Removal Caution in the Preface section. Procedure The part and surface should be 21°C (70°F) prior to installation. The ...

Other materials:

Rear Compartment Lid Emblem/Nameplate Replacement (VCDi AT)
Rear Compartment Lid Emblem Assembly Caution: Refer to Exterior Trim Emblem Removal Caution in the Preface section. Procedure The part and surface should be 21°C (70°F) prior to installation. The vehicle should remain 21°C (70°F) for one hour after assembly to allow adhesive to deve ...

Front Side Door Upper Hinge and Lower Hinge Replacement
Preliminary Procedure Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement. Remove the front fender insulator. Refer to Front Fender Insulator Replacement. Remove the front side door. Refer to Front Side Door Replacement. Front Side Door Hinge Bolt ( ...

Installation Procedure
Remove rear end upper panel extension (1) from service part. Cut the body side inner panel in corresponding locations to fit the remaining original panel. The sectioning joint should be trimmed to allow a gap of one-and-one-half-times the metal thickness at the sectioning jo ...
