Chevrolet Cruze Repair Manual: Symptoms - Squeaks and Rattles
Table 1: Rattle Coming From the Side Rail
Table 2: Rattle Under Vehicle at Higher RPM
Table 3: Thump From Rear of Vehicle on Bumps
Table 4: Glass Knock Coming From the Rear of the Vehicle When Driving Over Bumps
Table 5: Rattle Coming From Door
Table 6: Squeak When Operating Doors
Table 7: Squeak Coming From Console When Shifting Manual Transmission Condition Occurs In Cold Weather with a Cold Engine
Table 8: Buzz From the Left Side of Instrument Panel
Table 9: Squeak Coming From Instrument Cluster Trim Plate
Rattle Coming From the Side Rail
Rattle Under Vehicle at Higher RPM

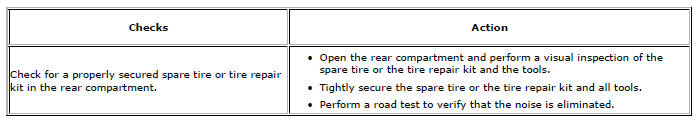

Thump From Rear of Vehicle on Bumps
Glass Knock Coming From the Rear of the Vehicle When Driving Over Bumps
Rattle Coming From Door
Squeak When Operating Doors

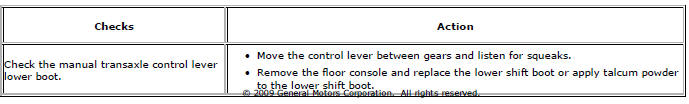

Squeak Coming From Console When Shifting Manual Transmission Condition Occurs In Cold Weather with a Cold Engine

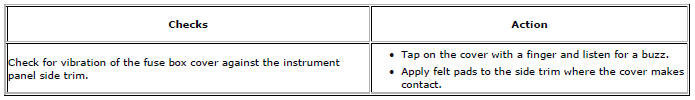

Buzz From the Left Side of Instrument Panel

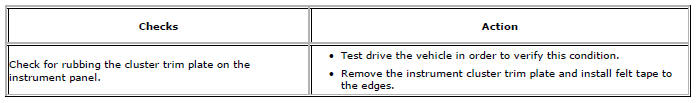

Squeak Coming From Instrument Cluster Trim Plate
Squeaks and Rattles
Note: Squeaks and rattles are caused by improperly controlled
relative motion between vehicle components. There are 4 ways to
prevent squeaks and rattles.
Attach the component that squeaks or r ...
