Chevrolet Cruze Repair Manual: Windshield Garnish Molding Replacement
Preliminary Procedure
Disable the SIR system. Refer to SIR Disabling and Enabling.

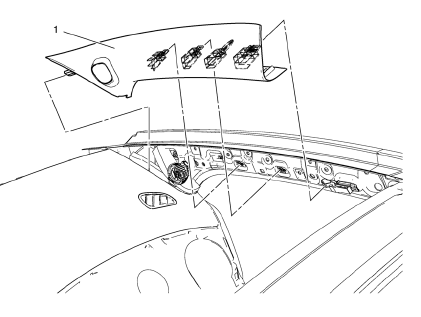

- Windshield Garnish Molding Assembly
Procedure
- Loosen tether clip and steel clips.
- Disconnect electrical connector.
- The tether clip at the upper portion of the garnish molding MUST be replaced any time the garinish molding is removed.
Front Side Door Trim Replacement
Front Side Door Pull Handle Bolt
Caution: Refer to Fastener Caution in the Preface section.
Tighten
2 N·m (18 lb in)
Front Side Door Inside Handle Bolt Finish Cap
Tip
Pull handle ...
Center Pillar Upper Garnish Molding Replacement
Preliminary Procedure
Remove the center pillar lower garnish molding. Refer to Center Pillar
Lower Ga rnish Molding Replacement
Remove the seat belt from the front seat. Refer ...
