Chevrolet Cruze Owners Manual: Engine Air Cleaner/Filter

When to Inspect the Engine Air Cleaner/Filter

Inspect the air cleaner/filter at the scheduled maintenance intervals and replace it at the first oil change after each 80 000 km (50,000 mi) interval. If you are driving in dusty/dirty conditions, inspect the filter at each engine oil change.

How to Inspect the Engine Air Cleaner/Filter

To inspect the air cleaner/filter, remove the filter from the vehicle and lightly shake the filter to release loose dust and dirt. If the filter remains covered with dirt, a new filter is required.

To inspect or replace the engine air cleaner/filter:

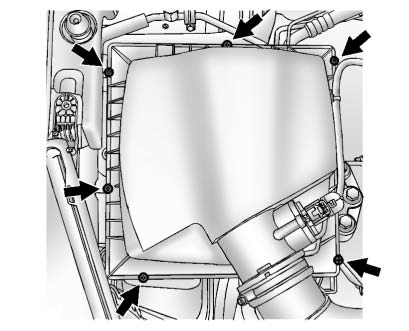

1.4L L4 Engine

1.8L L4 Engine

1.8L L4 Engine

1. Remove the six screws that secure the cover on.

1. Remove the six screws that secure the cover on.

2. Lift off the cover.

3. Inspect or replace the engine air cleaner/filter.

4. Align the filter correctly.

5. Install the cover by lowering it over the filter and secure with the six screws.

WARNING

Operating the engine with the air cleaner/filter off can cause you or others to be burned. The air cleaner not only cleans the air; it helps to stop flames if the engine backfires. Use caution when working on the engine and do not drive with the air cleaner/filter off.

Notice

: If the air cleaner/filter is off, dirt can easily get into the engine, which could damage it.

Always have the air cleaner/filter in place when you are driving.
