Chevrolet Cruze Repair Manual: Instrument Panel Cluster Lower Trim Plate Replacement

Chevrolet Cruze Repair Manual / Body hardware and trim / Instrument Panel and Console Trim / Instrument Panel Cluster Lower Trim Plate Replacement

Preliminary Procedure

Preliminary Procedure

Remove instrument panel cluster trim plate. Refer to Instrument Panel Cluster Trim Plate Replacement.

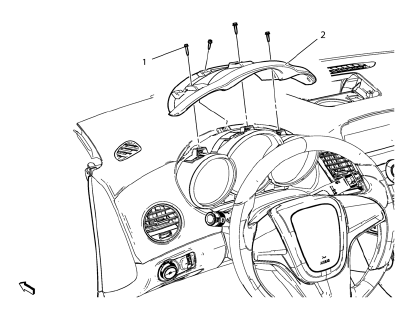

  1. Instrument Panel Cluster Lower Trim Plate Screw (Qty: 4)

Caution: Refer to Fastener Caution in the Preface section.

Tighten 2.5 Nm (23 lb in)

  1. Instrument Panel Cluster Lower Trim Plate Assembly
Instrument Panel Lower Trim Pad Cover Replacement
Preliminary Procedure Remove the left outer trim cover. Refer to Instrument Panel Outer Trim Cover Replacement - Left Side. Instrument Panel Lower Trim Pad Cover Screw (Qty: 3) Caution: ...

Instrument Panel Lower Trim Panel Replacement - Right Side
Instrument Panel Lower Trim Panel Replacement - Right Side ...
