Chevrolet Cruze Repair Manual: Wheel Alignment

Tyre Dismounting and Mounting

Caution: Use a tire changing machine in order to dismount tires. Do not use hand tools or tire irons alone in order to remove the tire from the wheel. Damage to the tire beads or the wheel rim coul ...

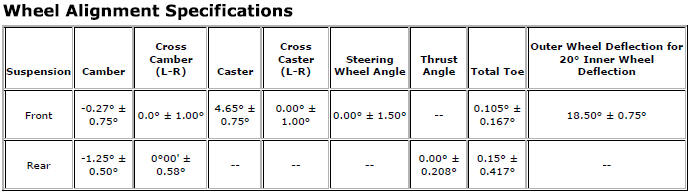

Wheel Alignment Measurement

Steering and vibration complaints are not always the result of improper alignment. One possible cause is wheel and tire imbalance. Another possibility is tire lead due to worn or improperly manuf ...

Other materials:

Installation Procedure
Create 6 x 20 mm (4/16 x 12/16 in) slots for MIG-brazing along the edges of the rear inner wheelhouse as noted from the original panel. Note: If the location of the original plug weld holes can not be determined, space the slots every 40 mm (1½ in). Clean and prepare the ...

Overlap/Backing Plate Sectioning (Welding)
Warning: Refer to Approved Equipment for Collision Repair Warning in the Preface section. Fit the service panel   to the vehicle to ensure a proper fit. Measure and mark a line at the sail panel 120 mm (4 3/4 in) from the back glass opening and 70 mm (2 3/4 in) rearward from the ...

Installation Procedure
Cut the front compartment front rail in corresponding locations to fit the remaining original panel. The sectioning joint should be trimmed to allow a gap of one-and-one-half-times the metal thickness at the sectioning joint. Create a 50 mm (2 in) backing plate from the unused porti ...
