Chevrolet Cruze Repair Manual: Front Fog Lamp Bulb Replacement

Chevrolet Cruze Repair Manual / Body systems / Lighting / Front Fog Lamp Bulb Replacement

Preliminary Procedures

Preliminary Procedures

  1. Raise and support the vehicle. Refer to Lifting  and Jacking the Vehicle
  2. Disconnect the forward lamp electrical harness connector from the fog lamp bulb socket.
  3. Remove the Front Bumper Fascia Opening Lower Cover. Refer to Front Bumper Fascia Opening Lower Cover Replacement.

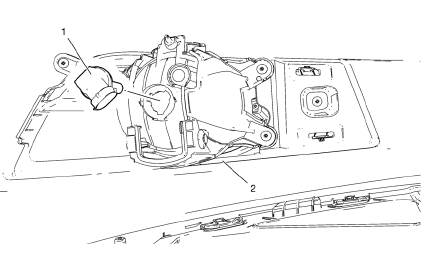

  1. Front Fog Lamp Projector Bulb

Warning: Refer to Halogen Bulb Warning in the Preface section.

Procedure

Rotate the bulb socket counterclockwise to remove from the lamp housing.

  1. Front Fog Lamp Assembly

Procedure

Remove the lamp assembly from the fog lamp bracket.

Front Fog Lamp Replacement
Preliminary Procedures Raise and support the vehicle. Refer to Lifting   and Jacking the Vehicle. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement. Disco ...

Fog Lamp Aiming
Preparation Procedure Important: Horizontal aim is not adjustable on this vehicle. Vertical aim is done by an adjusting nut located on the rear of the fog lamp. Prior to aiming the fog lamps, pe ...
