Chevrolet Cruze Owners Manual: Exterior Lamp Controls

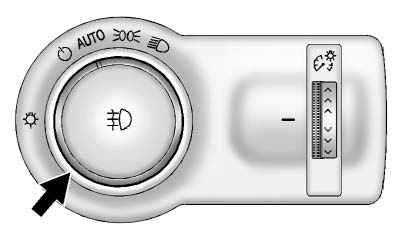

The exterior lamp control is to the left of the steering column on the instrument

The exterior lamp control is to the left of the steering column on the instrument panel.

There are four positions:

to turn the automatic lamp control off or on again. (Off): Briefly turn to this position to turn the automatic lamp control off or on again.

AUTO (Automatic):

Turns the headlamps on automatically at normal brightness, together with the following: • Parking Lamps
• Taillamps
• License Plate Lamps
•  Instrument Panel Lights •  Sidemarker Lamps

parking lamps on together with the following: (Parking Lamps):

Turns the parking lamps on together with the following: •  Taillamps
•  License Plate Lamps • Instrument Panel Lights •  Sidemarker Lamps

on together with the lamps listed below. A warning chime sounds if the driver door(Headlamps):

Turns the headlamps on together with the lamps listed below. A warning chime sounds if the driver door is opened when the ignition switch is off and the headlamps are on.

• Parking Lamps
• Taillamps
• License Plate Lamps
.• Instrument Panel Lights • Sidemarker Lamps

For vehicles with fog lamps, press to turn the lamps on or off.  (Front Fog Lamps):

For vehicles with fog lamps, press to turn the lamps on or off.

Exterior Lighting
...

Headlamp High/Low-Beam Changer
(Headlamp High/Low-Beam Changer): Push the turn signal lever away from you and release to turn the high beams on. To return to low beams, push the lever again or pull it toward you and release. ...
