Chevrolet Cruze Owners Manual: Exterior Lighting

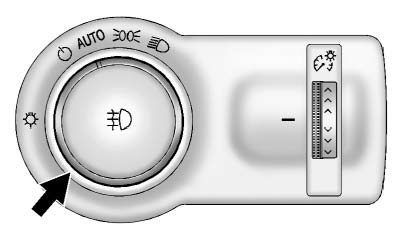

The exterior lamp control is to the left of the steering column on the instrument panel.
: Briefly turn to this position
to turn the automatic lamp control off or on again.
AUTO: Turns the headlamps on automatically at normal brightness, together with the parking lamps, taillamps, license plate lamps, sidemarker lamps, and instrument panel lights.
: Turns on the parking lamps, taillamps,
license plate lamps, sidemarker lamps, and instrument panel lights.
: Turns on the headlamps, parking
lamps, taillamps, license plate lamps, sidemarker lamps, and instrument panel lights.
A warning chime sounds if the driver door is opened when the ignition switch is
off and the headlamps are on.
: For vehicles with fog lamps, press
to turn the lamps on or off.
See:
• Exterior Lamp Controls
• Daytime Running Lamps (DRL)
• Front Fog Lamps
Interior Lighting
Dome Lamps
The dome lamp controls are located in the headliner.
: Press to turn the lamps off, even
when a door is open.
: Press to turn the lamps on automatically
when a door is opened.
: ...
Windshield Wiper/Washer
The windshield wiper/washer lever is on the right side of the steering column.
With the ignition in ACC/ ACCESSORY or ON/RUN, move the windshield wiper lever to
select the wiper speed.
HI: Use ...
