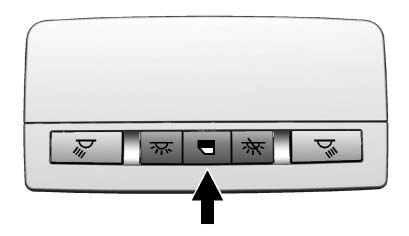

Dome Lamps
The dome lamp controls are located in the headliner.
: Press to turn the lamps off, even
when a door is open.
: Press to turn the lamps on automatically
when a door is opened.
: Press to turn on the dome lamps.
Reading Lamps
The reading lamps are located in the overhead console.
or
: Press the button near each lamp to
turn it on or off.

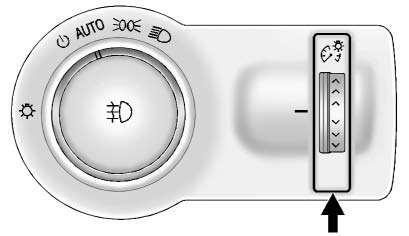

Instrument Panel Illumination Control
This feature controls the brightness of the instrument panel controls and infotainment display screen. The thumbwheel is located to the left of the steering column on the instrument panel.
: Turn the thumbwheel up or down
and hold, to brighten or dim the instrument panel controls and infotainment display
screen.
Instrument Panel Tie Bar Replacement (Right Hand Drive)
Removal Procedure
Remove instrument panel compartment. Refer to Instrument Panel
Compartment Replacement.
Remove instrument panel wiring harness (2) from instrument panel tie bar
(1).
Disconnect electrical connectors.
Remove instrument panel tie bar (1).
Remov ...
Removal Procedure
Warning: Refer to Approved Equipment for Collision Repair Warning in the
Preface section.
Warning: Refer to Collision Sectioning Warning in the Preface section.
Warning: Refer to Glass and Sheet Metal Handling Warning in the Preface section.
Disable the SIR System. Refer to SIR Dis ...
Installation Procedure
Drill 8 mm (5/16 in) for plug welding along the edges of the rear inner
wheelhouse as noted from the original panel.
Note: If the location of the original plug weld holes can not be
determined, space the plug weld holes every 40 mm (1½ in).
Clean and prepare the attaching & ...
