Chevrolet Cruze Repair Manual: Removal Procedure

Warning: Refer to Approved Equipment for Collision Repair Warning in the Preface section.

Warning: Refer to Collision Sectioning Warning in the Preface section.

Warning: Refer to Glass and Sheet Metal Handling Warning in the Preface section.

  1. Disable the SIR System. Refer to SIR  Disabling and Enabling.
  2. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection.
  3. Remove all related panels and components.
  4. Visually inspect the damage. Repair as much of the damage as possible.
  5. Remove the sealers and anti-corrosion materials from the repair area, as necessary. Refer to Anti-Corrosion Treatment and Repair.

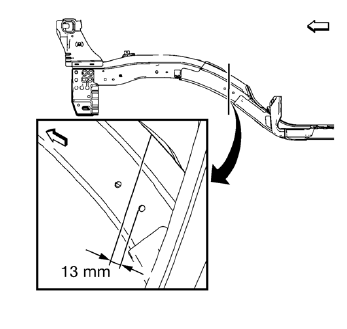

  1. Create cut lines on the front compartment front rail.

Note: Do not damage any other panels or reinforcements.

Note: Do not damage any other panels or reinforcements.

  1. Cut the panel where sectioning is to be performed.

  1. Remove the damaged front compartment front rail.
Front Compartment Side Rail Sectioning (Long, MAG-Welding)
Note: According to different corrosion warranties, only the regional mandatory joining methods are allowed. ...

Installation Procedure
Cut the front compartment front rail in corresponding locations to fit the remaining original panel. The sectioning joint should be trimmed to allow a gap of one-and-one-half-times the met ...
