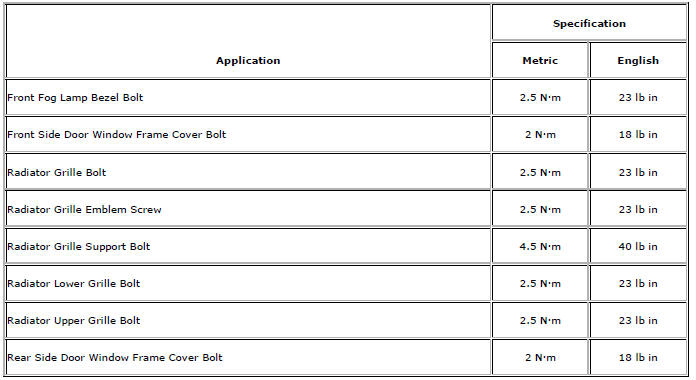

Chevrolet Cruze Repair Manual: Specifications

Front Door (Diesel)

Front Door (Diesel)

  1. 65 mm
  2. 83 mm

Front Door (Diesel)

  1. 60 mm
  2. 87 mm

Rear Compartment Lid (Diesel)

  1. 122 mm
  2. 32 mm

Rear Compartment Lid (Ecoline)

  1. 162 mm
  2. 32 mm
Exterior Trim
...

Front Fender Emblem/Nameplate Replacement (1.8L 2H0 or 2.0L Diesel)
Front Fender Emblem Assembly Caution: Refer to Exterior Trim Emblem Removal Caution in the Preface section. Procedure The part and surface should be 21°C (70°F) prior to installation. The ...

Other materials:

Installation Procedure
Cut the rear side rail in corresponding locations to fit the remaining original panel. The sectioning joint should be trimmed to allow a gap of one-and-one-half-times the metal thickness at the sectioning joint. Create a 50 mm (2 in) backing plate from the unused portion of the serv ...

Steering Column in Lock Position Caution
Caution: With wheels of the vehicle facing straight ahead, secure the steering wheel utilizing steering column anti-rotation pin, steering column lock, or a strap to prevent rotation. Locking of the steering column will prevent damage and a possible malfunction of the SIR system. The steering ...

Rear Suspension Description and Operation
This vehicle has a semi-independent twist-beam rear suspension system consisting of the following components: An axle with integral trailing arms AV shaped twisting cross beam Two coil springs Two shock absorbers Axle Assembly The axle assembly (1) attaches to the underbody throu ...
