Chevrolet Cruze Repair Manual: Front Floor Console Replacement

Preliminary Procedure

Preliminary Procedure

  1. Remove the instrument panel lower trim panel - left side. Refer to Instrument Panel Lower Trim Panel Replacement - Left Side
  2. Remove the instrument panel lower trim panel - right side. Refer to Instrument Panel Lower Trim Panel Replacement - Right Side
  3. Remove transmission control lever trim cover. Refer to Automatic or Manual Transmission Control Lever Trim Cover Replacement

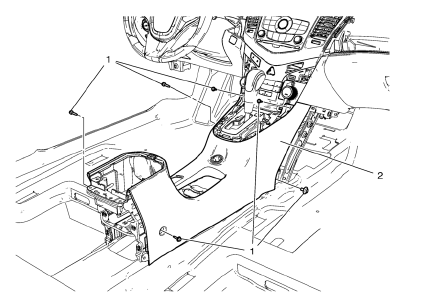

  1. Front Floor Console Screw (Qty: 10)

Caution: Refer to Fastener Caution in the Preface section.

Tighten 2.5 Nm(23 lb in)

  1. Front Floor Console Assembly

Procedure

Disconnect the electrical connections.

Front Floor Console Armrest Replacement

Preliminary Procedure

Preliminary Procedure

Remove the front floor console rear cover. Refer to Front Floor Console Rear Cover Replacement.

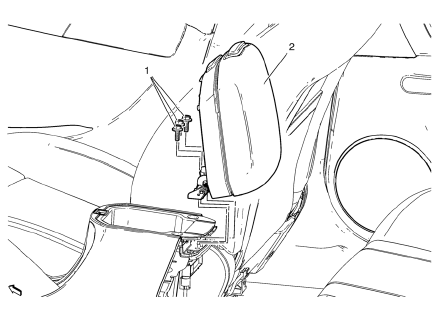

  1. Front Floor Console Armrest Bolt (Qty: 3)

Caution: Refer to Fastener Caution in the Preface section.

Tighten 2.5 Nm (22 lb in)

  1. Front Floor Console Armrest

Front Floor Console Rear Cover Replacement

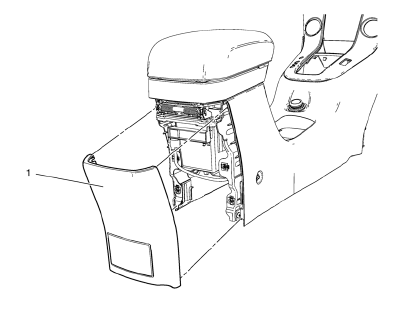

Front Floor Console Rear Cover Assembly

Front Floor Console Rear Cover Assembly

Procedure

  1. Grasp the cover assembly and pull rearward disengaging the retainer clips securing the cover to the floor console.
  2. Disconnect the electrical connections.
  3. When replacing the front floor console rear cover assembly, transfer all necessary components.
Front Floor Console Storage Tray Replacement
Preliminary Procedure Remove the automatic or manual transmission control lever trim cover. Refer to Automatic or Manual Transmission Control Lever Trim Cover Replacement Front Floor Conso ...

Roof Console Replacement
Dome Lamp Bezel Roof Console Screw (Qty: 2) Caution: Refer to Fastener Caution in the Preface section. Tighten 2.5 Nm (22 lb in) Roof Console Assembly Procedure Disconnect&nb ...
