Chevrolet Cruze Repair Manual: Rear Bumper Impact Bar Replacement

Chevrolet Cruze Repair Manual / Body repair / Rear Bumper Impact Bar Replacement

Preliminary Procedure

Preliminary Procedure

Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement.

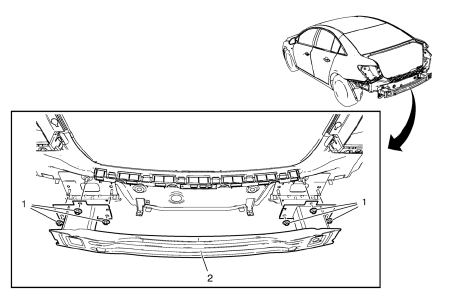

  1. Rear Bumper Energy Absorber Nut (Qty: 6)

Caution: Refer to Fastener Caution in the Preface section.

Tighten 40 Nm (30 lb ft)

  1. Rear Bumper Impact Bar

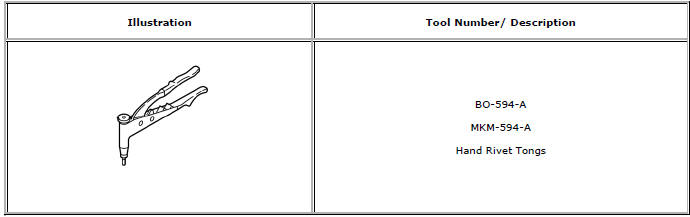

Special Tools and Equipment

Collision Repair
