Chevrolet Cruze Repair Manual: Driver or Passenger Seat Recliner Handle Replacement

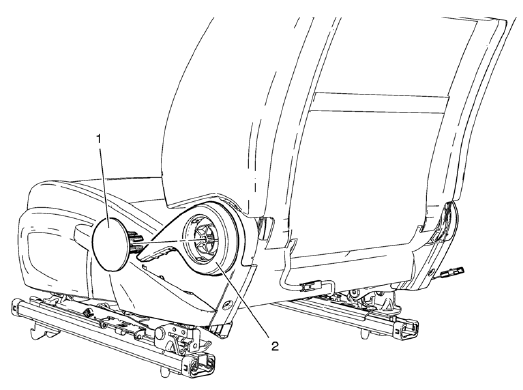

Recliner Handle Panel Seat Backrest
Procedure
Use flat blade to removel panel.
Recliner Handle Seat Backrest
Procedure
Use flat blade to remove handle.
Driver or Passenger Seat Back Cushion Cover and Pad Replacement
Removal Procedure
Warning: Refer to SIR Warning in the Preface section.
Warning: Replace the passenger presence system as a complete assembly to prevent
possible injury to the occupant. The blad ...
Driver Seat Frame Replacement
Removal Procedure
Remove front seat cushion cover (1) and pad (2) from frame (3). Refer to
Front Seat Cushion Cover and Pad Replacement
Remove the wire harness (1), if equipped.
...
