Chevrolet Cruze Repair Manual: Instrument Panel Lower Trim Pad Cover Replacement

Chevrolet Cruze Repair Manual / Body hardware and trim / Instrument Panel and Console Trim / Instrument Panel Lower Trim Pad Cover Replacement

Preliminary Procedure

Preliminary Procedure

Remove the left outer trim cover. Refer to Instrument Panel Outer Trim Cover Replacement - Left Side.

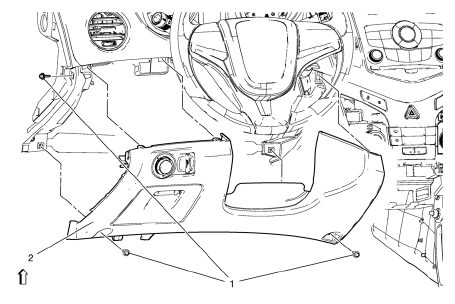

  1. Instrument Panel Lower Trim Pad Cover Screw (Qty: 3)

Caution: Refer to Fastener Caution in the Preface section.

Tighten 2.5 N·m (23 lb in)

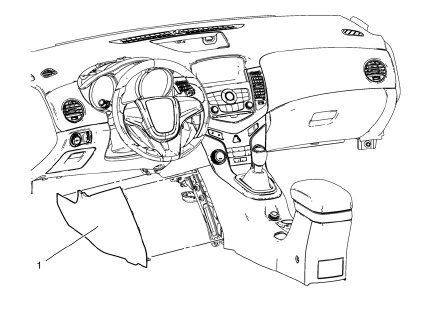

  1. Instrument Panel Lower Trim Pad Cover Assembly

Procedure

  1. Remove headlamp switch.
  2. Disconnect the electrical connectors.
  3. When replacing the lower trim pad cover, transfer all necessary components.

Instrument Panel Lower Trim Panel Replacement - Left Side

  1. Instrument Panel Lower Trim Panel Replacement - Left Side
Instrument Panel Accessory Bezel Replacement
Preliminary Procedure Remove transmission control cover. Refer to Automatic or Manual Transmission Control Lever Trim Cover Replacement. Instrument Panel Accessory Bezel Screw (Qty: 4) C ...

Instrument Panel Cluster Lower Trim Plate Replacement
Preliminary Procedure Remove instrument panel cluster trim plate. Refer to Instrument Panel Cluster Trim Plate Replacement. Instrument Panel Cluster Lower Trim Plate Screw (Qty: 4) Cauti ...
