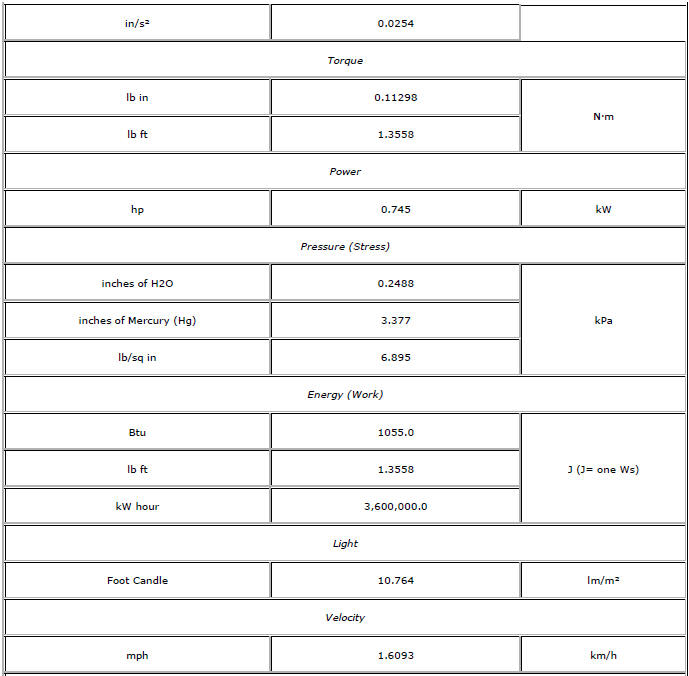

Chevrolet Cruze Repair Manual: US English/Metric Conversion

Decimal and Metric Equivalents

Decimal and Metric Equivalents

Arrows and Symbols

Arrows and Symbols

This service manual uses various symbols in order to describe different service operations.

  1. Front of Vehicle
  2. View Detail
  3. View Detail
  4. Ambient Air Mixed with Another Gas or Indicate Temperature Change
  5. Motion or Direction
  6. View Angle
  7. Dimension (1:2)
  8. Ambient/Clean Air Flow or Cool Air Flow
  9. Lubrication Point - Oil or Fluid
  10. Task Related
  11. Sectioning (1:3)
  12. Gas Other Than Ambient Air or Hot Air Flow
  13. Lubrication Point - Grease or Jelly
  14. Multidirectional Arrow
General Information
...

Vehicle, Engine and Transmission ID and VIN Location, Derivative and Usage
Note:: Graphic shows exemplary VIN. The VIN plate is the legal identifier of the vehicle. The VIN plate is located on the upper left corner of the instrument panel (I/P) and can be seen throug ...
