Chevrolet Cruze Repair Manual: Interior Trim and Paneling
Specifications
Front Side Door Window Switch Bezel Replacement
Preliminary Procedure
Remove the front side door trim. Refer to Front Side Door Trim Replacement.
- Front Side Door Window Switch Bezel Screw (Qty: 8)
Caution: Refer to Fastener Caution in the Preface section.
Tighten 2.5 N·m (22 lb in)
- Front Side Door Window Switch Bezel Assembly
Rear Side Door Window Switch Bezel Replacement
Preliminary Procedure
Remove the rear side door trim. Refer to Rear Side Door Trim Replacement
- Rear Side Door Window Switch Bezel Screw (Qty: 8)
Caution: Refer to Fastener Caution in the Preface section.
Tighten 2.5 N·m (22 lb in)
- Rear Side Door Window Switch Bezel Assembly
Front or Rear Side Door Locking Rod Knob Trim Cover Replacement
- Side Door Locking Rod Knob Trim Cover Assembly

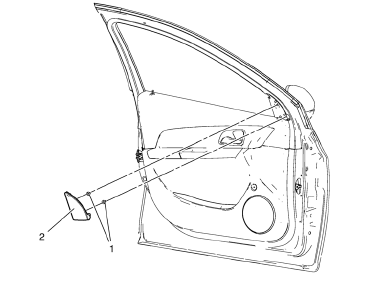

Front Side Door Upper Trim Cover Replacement
- Front Side Door Upper Trim Cover Assembly Clip (Qty: 2)
- Front Side Door Upper Trim Cover Assembly
- Front Side Door Trim Replacement
- Windshield Garnish Molding Replacement
- Center Pillar Upper Garnish Molding Replacement
- Body Side Trim Panel Replacement - Left Side
- Rear Side Door Trim Replacement
Roof Console Replacement
Dome Lamp Bezel
Roof Console Screw (Qty: 2)
Caution: Refer to Fastener Caution in the Preface section.
Tighten
2.5 N·m (22 lb in)
Roof Console Assembly
Procedure
Disconnect&nb ...
Front Side Door Trim Replacement
Front Side Door Pull Handle Bolt
Caution: Refer to Fastener Caution in the Preface section.
Tighten
2 N·m (18 lb in)
Front Side Door Inside Handle Bolt Finish Cap
Tip
Pull handle ...
