Chevrolet Cruze Repair Manual: Rear Suspension

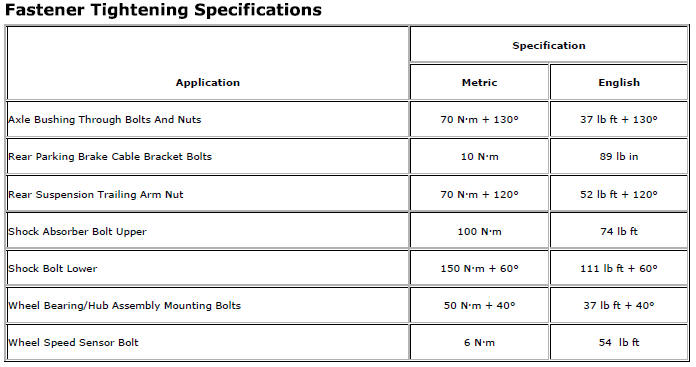

Specifications

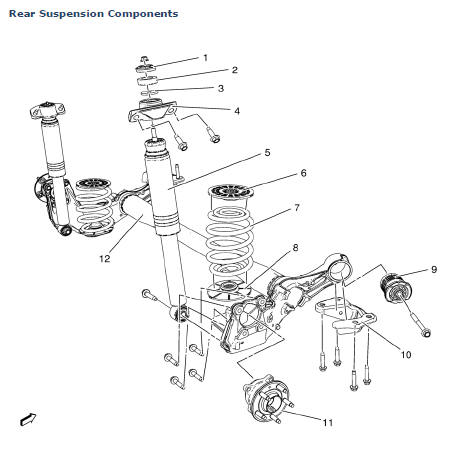

Rear Suspension Components
- Rear Shock Absorber Upper Mount
- Rear Shock Absorber Upper Mount
- Rear Shock Absorber Upper Mount
- Rear Shock Absorber Upper Mount
- Shock Absorber Assembly
- Upper Dumping Ring
- Rear Spring
- Lower Dumping Ring
- Rear Axle Bushing
- Rear Axle Bracket
- Rear Wheel Bearing
- Rear Axle
- Rear Wheel Bearing and Hub Replacement (Disc Brake)
- Rear Wheel Bearing and Hub Replacement (Drum Brake)
- Rear Axle Bushing Replacement
- Shock Absorber Replacement
- Shock Absorber Disposal
- Rear Spring Insulator Replacement
- Rear Spring Replacement
- Rear Axle Replacement
- Wheel Stud Replacement
- Rear Suspension Description and Operation
Front Suspension Description and Operation
The front suspension has 2 primary purposes:
Isolate the driver from irregularities in the road surface.
Define the ride and handling characteristics of the vehicle.
The front suspension abso ...
Rear Wheel Bearing and Hub Replacement (Disc Brake)
Special Tools
EN 45059 Torque Angle Sensor Kit
For equivalent regional tools, refer to Special Tools.
Removal Procedure
Raise and suitably support the vehicle. Refer to Lifting and ...
